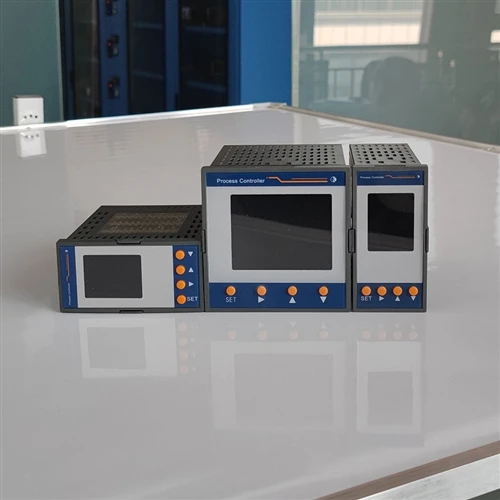

The DK2900 process controller's master-slave networking and synchronization function is the answer. The master controller runs the process curve and broadcasts the setpoint (SV) in real time to all slave controllers via RS485 communication. The slaves automatically follow the master's heating rhythm while running their own independent PID control. Supporting up to 64 slave stations, one curve leads the entire team - multi-zone synchronization challenges once and for all.
I. Three Traditional Pain Points of Multi-Zone Control
In large industrial furnaces, diffusion furnaces, and roller kilns, the number of temperature zones ranges from three or four to over a dozen - sometimes even several dozen. The conventional "every controller for itself" approach has clear shortcomings.
Pain point one: repetitive curve programming is inefficient and error-prone. Each zone has its own controller. When changing products, you must enter the ramp rate, soak temperature, soak time, and cooling curve into every unit. With ten controllers, that's ten rounds of repetitive work - not only time-consuming, but a single parameter entry error on one controller can ruin an entire batch.
Pain point two: zones heat out of sync, creating large temperature differentials. Even if every controller is programmed with the identical curve, actual heating performance varies due to differences in thermal mass, sensor placement, and PID tuning. During ramp-up, temperature differences can reach tens of degrees, leading to uneven workpiece heating, distortion, cracking, and inconsistent material properties.
Pain point three: recipe changes are hard to coordinate - change one, change all. When process parameters need adjustment mid-production (extending soak time, changing ramp rate), operators must walk to every controller and make the change manually - impractical and easy to miss. Without centralized management, process consistency is simply impossible to guarantee.
The root cause is clear: each controller is an "information island," lacking a unified command center. The master-slave networking function establishes a "communication bus" across all controllers, with the master as "commander-in-chief" and the slaves as "executors," working in lockstep to complete the process curve.
II. How DK2900 Master-Slave Networking Works
The DK2900 is equipped with two independent RS485 communication ports (Ethernet optional), one dedicated to master-slave synchronization. The system architecture is straightforward.
Master controller (master station): the commander. Set its communication address to 0. It stores and runs the process curves. The DK2900 supports 20 process curves, each with up to 50 program segments, including ramp, soak, cooling, segment-internal looping, and full-curve looping. The master calculates the current setpoint (SV) in real time according to the curve and broadcasts it to all slaves over the RS485 bus at a fixed interval.
Slave controllers (slave stations): the executors. Set their communication addresses from 1 to 247. They receive the SV broadcast from the master, use it as their own setpoint, and independently run PID algorithms to control their respective zone temperatures. Each slave adjusts its output based on its own zone's actual conditions, ensuring its zone temperature quickly tracks the master's setpoint.
Synchronization mechanism: real-time, precise, drift-free. Master-slave synchronization uses fully digital communication - unlike analog remote setpoints, there is no signal attenuation or drift. When the master's SV changes, slaves update their setpoint within one communication cycle, with minimal synchronization delay. All slaves receive the same SV source, so theoretically every zone's setpoint is identical - guaranteeing synchronization at the source.
Up to 64 slave stations. On a single RS485 bus, one master can connect up to 64 slave controllers - enough for nearly all multi-zone industrial furnace applications. For extra-large equipment with an especially high number of zones, the dual communication ports can be expanded, or Ethernet networking can be used to flexibly handle any scale.
III. Four Core Advantages - Goodbye to "Every Controller for Itself"
1. One curve, the whole team follows. Process curves only need to be programmed once on the master, and all slaves automatically follow the master's SV. When switching products or adjusting recipes, changing the master alone changes everything - boosting efficiency by dozens of times and completely eliminating human error from manual entry across multiple units.
2. Precise multi-zone synchronization, minimized temperature differentials. All slaves receive their setpoint from the same source, so ramp rate, soak temperature, and cooling slope are completely consistent. Combined with independent PID tuning for each slave, every zone's actual temperature closely tracks the set curve. During ramp-up, inter-zone temperature differences can be kept within an extremely tight range, ensuring uniform workpiece heating and dramatically improved product consistency.
3. Dual communication design - monitoring and networking at the same time. The DK2900 features two independent RS485 ports: one for master-slave synchronization, the other for connecting to an HMI, host computer, or DCS system for data acquisition, remote monitoring, and curve recording - without mutual interference. Modbus TCP Ethernet is also optional for integration with factory MES systems.
4. Fully digital closed loop, stable and reliable. Master-slave synchronization uses digital communication, immune to analog signal attenuation, electromagnetic interference, and zero-point drift. If communication is interrupted, slaves can be configured with safe output strategies (hold current output or shut down output) to ensure equipment safety. Combined with the DK2900's 32-bit RISC processor and self-developed PID algorithm, control response is fast and precision is high.
IV. Typical Application Scenarios
Scenario one: multi-zone diffusion / annealing furnaces. Semiconductor diffusion furnaces typically have 3 to 5 zones, each requiring strict temperature uniformity. With DK2900 master-slave networking, the master runs the process curve and all zone slaves follow in sync. During ramp-up, inter-zone temperature differences can be controlled within ±1°C, meeting the stringent requirements of semiconductor processing.
Scenario two: large bogie hearth / pit furnaces. Large heat treatment furnaces have large chambers and multiple zones, with top-bottom and front-rear temperature differences being persistent challenges. Master-slave networking ensures all zones heat and cool along the same curve. With proper PID tuning, furnace temperature uniformity improves significantly, and heat treatment quality becomes stable and reliable.
Scenario three: third-generation crystal growth furnaces. Crystal growth demands extremely precise temperature gradients and ramp rates, typically requiring multi-stage precision control. The DK2900's 6-digit high-resolution display and master-slave synchronization ensure every zone strictly follows the process curve, providing a stable thermal field for crystal growth. Dekun's DK2900 has been successfully applied in third-generation crystal growth.
Scenario four: roller hearth / pusher kilns. Continuous-production kilns have multiple temperature zones along their length, each requiring a different temperature setpoint while overall process management must be unified. In master-slave mode, each slave can be configured with a different SV offset - following the master curve while fine-tuning its own zone target. This ensures overall process synchronization while meeting each zone's differentiated requirements.
Scenario five: multi-unit synchronized aging / test lines. Some product aging tests require multiple test furnaces to run the identical temperature curve simultaneously. Master-slave networking keeps all test furnaces heating and cooling in sync, ensuring completely consistent test conditions and more scientifically valid comparative data.
V. Configuration Steps (Practical Guide)
Configuring DK2900 master-slave networking is simple - complete it in four steps.
Step one: hardware wiring. Connect all controllers' RS485 interfaces in series using shielded twisted-pair cable - A to A, B to B - with 120Ω terminating resistors at both ends of the bus. Master and slaves share the same communication line, with a maximum communication distance of 1200 meters.
Step two: configure the master. Set the master's communication address to 0, enable the master-slave synchronization function, and select the desired process curve (20 available, each up to 50 segments). The master's second communication port can connect to a host computer for monitoring.
Step three: configure the slaves. Assign each slave a unique communication address (1, 2, 3... - no duplicates), enable the slave synchronization function, and set the zone's PID parameters and output type. Slaves automatically receive the master's broadcast SV and enter control mode.
Step four: trial run and verification. Start the master's process curve and verify that each slave's SV matches the master's and that the PV (process value) tracks properly. Fine-tune each slave's PID parameters based on actual zone response, ensuring all zones heat and cool in sync with minimal overshoot and fast stabilization.
VI. Important Notes for Use
When using the master-slave networking function, pay special attention to the following:
Communication cable must be shielded twisted-pair, with the shield grounded at one end only, routed away from power cables to avoid electromagnetic interference causing communication packet loss
120Ω terminating resistors are required at both bus ends - without them, signal reflection will cause unstable communication
Slave addresses must not be duplicated - assign each slave a unique address (1~247); the master is fixed at 0
Each slave's PID parameters must be tuned independently - because zone thermal mass and load characteristics differ, the same parameters cannot be copied across all zones
Set communication baud rate appropriately - use lower baud rates (e.g., 9600) for long distances, and higher baud rates (e.g., 38400) for short distances with fewer slaves to improve synchronization speed
Slaves support SV offset - if a zone needs to be a few degrees higher or lower than the master curve, set an offset compensation on the slave without modifying the master curve
Conclusion
Multi-zone synchronous control is essentially the management philosophy of "unified command, distributed execution" applied to industrial control. With its dual communication architecture, digital synchronization technology, and powerful curve programming capabilities, the DK2900 lets one master controller effortlessly lead up to 64 slaves in running process curves in unison - guaranteeing process consistency while dramatically improving operational efficiency.
